Nvidia Jetson Orin for edge deployment

Description​

An industrial barebones PC for the NVIDIA® Jetson Orin™ NX and Jetson Orin™ Nano systems-on-modules delivers 20–100 TOPS of AI performance.

  • NVIDIA Jetson Module Compatible: Jetson Orin™ NX 16GB
  • Industrial fanless barebones PC with dimensions of 152×173×50 mm
  • Versatile wireless/storage expansions with M.2 B key, M.2 E key, and M.2 key M socket
  • Five rear I/O configurations available for different requirements
  • Rugged barebones PC chassis supports a wide operating temperature range, wide power input range, and vibration tolerance (-20 ~ 60 ºC / -4 ~ 140 ºF / 9 ~ 36 VDC / 3.0 Grms)
  • NVIDIA JetPack 5.1 support
  • The ROS2 Suite supports robotics development

Specification​

apiVersion: edgecell.io/v1
kind: NodeType
metadata:
  name: an1
  namespace: edgecell.io
  uuid: a2a00690-c8fd-48a4-b70a-000a5b820afd
  labels:
    arch: amd64
  annotations:
    enclosure: aluminium
    temp-max: 60C
    temp-min: -20C
    power-input: 9-36 vdc
    power-comsumption: 40W
    cpu-name: "NVIDIA Jetson Orin NX"
    documentation: https://edgecell.io/docs/node-types/an1
spec:
  cpu:
    - cores: 8
      arch: amd64
      speed: 2GHz
  gpu:
    - cores: 1024
      arch: ampere
      speed: 918MHz
    - cores: 32
      arch: tensor
      speed: 918MHz
  memory:
    - size: 16Gi
      type: ddr5
  storage:
    - size: 500Gi
      slot: nvme
      type: ssd
  network:
    - bandwidth: 1000Mi
      type: eth
    - bandwidth: 1000Mi
      type: eth

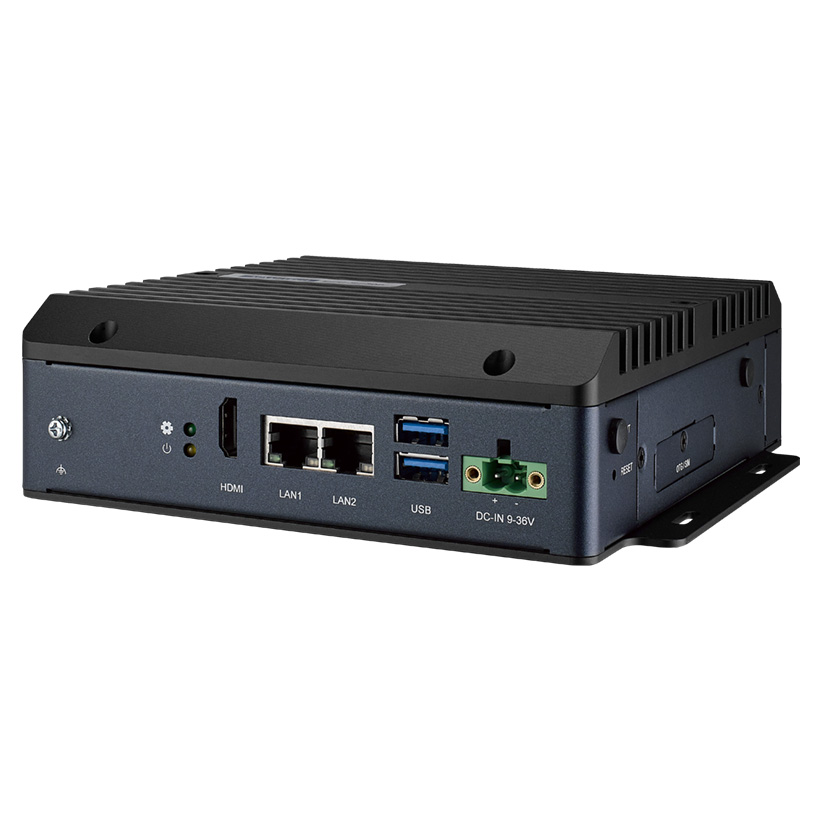

Image​
