cn1

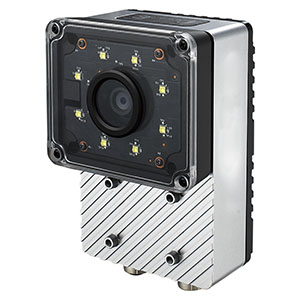

Industrial AI Camera equipped with NVIDIA Jetson Xavier NX computing module and SONY industrial grade image sensor.

Description

• Embedded with NVIDIA® Jetson Xavier™ NX
• 1.6MP 60 FPS, SONY industrial grade sensor
• Programmable variable focus lens
• Advanced LED illumination

Deploy machine learning (ML) models directly to the node to process video at the source. Send the results of the models via the edge private network to other edge applications or to the cloud.

Specification

apiVersion: edgecell.io/v1
kind: NodeType
metadata:
  name: cn1
  namespace: edgecell.io
  uuid: 3a70a43d-9aca-4b62-8d62-b0b6ee603572
  labels:
    arch: arm64
  annotations:
    enclosure: aluminium
    temp-max: 45C
    temp-min: 0C
    power-input: 19-24 vdc
    power-consumption: 15W
    cpu-name: "NVIDIA Xavier NX"
    documentation: https://edgecell.io/docs/node-types/cn1
spec:
  cpu:
    - cores: 6
      arch: arm64
      speed: 1.9GHz
  gpu:
    - cores: 384
      arch: volta
    - cores: 48
      arch: tensor
  memory:
    - size: 8Gi
      type: ddr4
      slot: sodimm
  storage:
    - size: 16Gb
      type: eemc
  network:
    - bandwidth: 1000Mi
      type: eth
