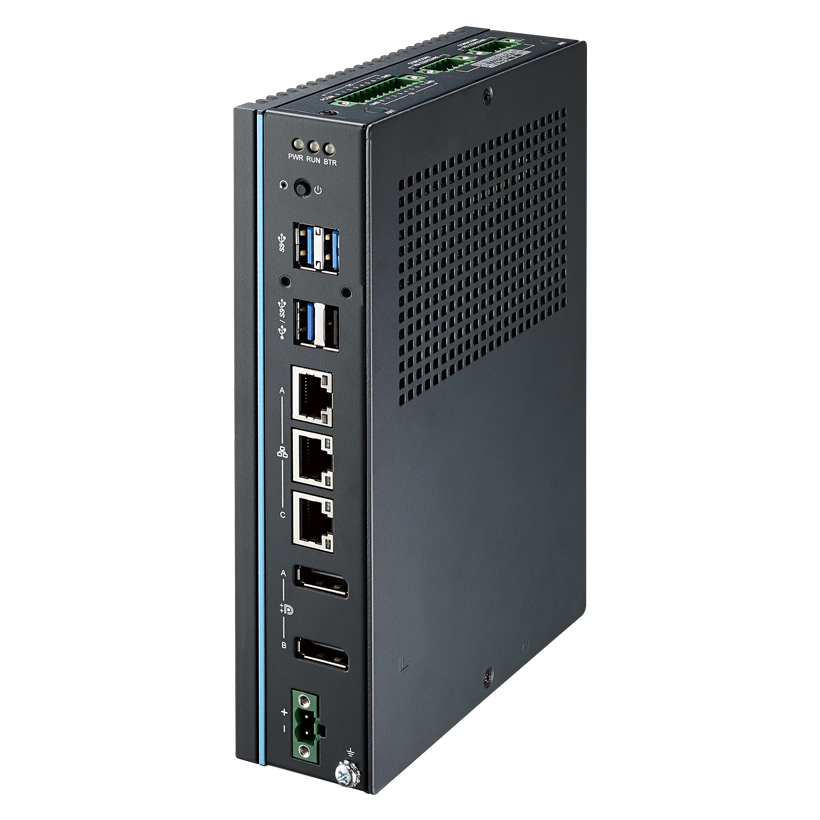

ax1

Standard amd64 (x86_64) edge node

Description

Mechanical
Weight (Net)	1.3 kg
Enclosure	Aluminum housing
Mounting	DIN-rail
Hardware
Certification	CB, UL, CE, FCC, CCC, BSMI
Power Input	10~36 VDC
Hardware Security	TPM 2.0
CPU	Intel® Core™ i7-1185G7E 1.8GHz Quad core
Memory	1 x SO-DIMM with 8 GB DDR4 3200 MHz, 1 x DDR4 SO-DIMM Slot
Graphics Engine	Intel® Iris® X
Storage	1 x NVMe M.2 SSD slot (2280 M-key), 1 x M.2 B key
I/O Interface
Serial Ports	4 x isolated RS-232/422/485
LAN Ports	2 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps
USB Ports	3 x USB 3.2, 1 x USB 2.0
Power Connector	1 x 2-Pin Terminal Block
Displays	2 x DP
Expansion	1 x Full-size mPCIe, 1 x M.2 E key, 1 x M.2 M key, 1 x M.2 B key
General Digital I/O	8-ch DI, 8-ch DO
Environment
Relative Humidity	10~95% RH (non-condensing)
Ingress Protection	IP20
Shock Protection	50 G, half sine
Vibration Protection	4 Grms, random
Operating Temperature	-20C to 60C

Specification

apiVersion: edgecell.io/v1
kind: NodeType
metadata:
  name: ax1
  namespace: edgecell.io
  uuid: 5b82224a-d64e-42b6-9f25-a125ea08fd97
  labels:
    arch: amd64
  annotations:
    enclosure: aluminium
    mounting: din-rail
    ingress: IP20
    temp-max: 85C
    temp-min: -40C
    power-input: 10-36 vdc
    cpu-name: "Intel® Core™ i7-1185G7E 1.8GHz Quad core"
    documentation: https://edgecell.io/docs/node-types/ax1
spec:
  cpu:
    - cores: 4
      vcores: 8
      arch: amd64
      speed: 1.8GHz
  memory:
    - size: 16Gi
      type: ddr4
      slot: sodimm
  storage:
    - size: 500Gi
      slot: nvme
      type: ssd
  network:
    - bandwidth: 1000Mi
      type: wifi
    - bandwidth: 1000Mi
      type: eth
    - bandwidth: 1000Mi
      type: eth
    - bandwidth: 2500Mi
      type: eth
